Basic Info.
Model NO.
SP002
Sprinkler Type
360 Gear Drive
Sprinkler Head
Three-Position
Spray Rod
Right Angle
Main Frame
Stainless Steel
Rubber Hose
Od 29mm; Thickness 5mm
Transport Package
Sea-Worthy Packing
Specification
Customized
Trademark
Zenong
Origin
China
HS Code
940600000
Production Capacity
10000 Pieces/Year
Product Description
Basic Introduction

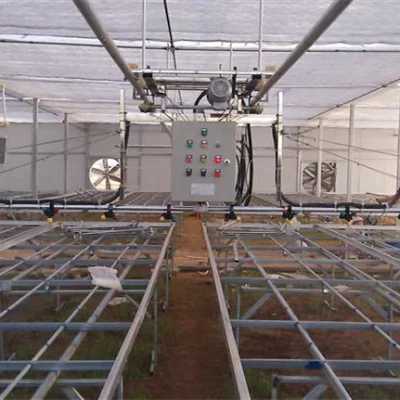

Self-propelled sprinkler is specially designed for greenhouse. It is suspended on a double-track tube on the greenhouse truss.Programmable logic module is used to control the automatic walking, irrigation position and irrigation repetition times of sprinkler. The forward and return speeds of the sprinkler can be set to different speeds and can be adjusted at any time. Work when using magnetic control irrigation location, on the tracks when the sprinkler reaches the position of the magnetic stick can automatically stop when watering, arrived at the next magnetic stick to restart again, can cross the greenhouse footpath not watering, maintain its clean and save water, use this function, can automatically realize the sprinkler run direction in a plot to choose irrigation (only irrigation irrigation area) who need it.
Technical Parameters
Specially designed for greenhouse
Related Greenhouse Facilities
Self-propelled sprinkler is specially designed for greenhouse. It is suspended on a double-track tube on the greenhouse truss.Programmable logic module is used to control the automatic walking, irrigation position and irrigation repetition times of sprinkler. The forward and return speeds of the sprinkler can be set to different speeds and can be adjusted at any time. Work when using magnetic control irrigation location, on the tracks when the sprinkler reaches the position of the magnetic stick can automatically stop when watering, arrived at the next magnetic stick to restart again, can cross the greenhouse footpath not watering, maintain its clean and save water, use this function, can automatically realize the sprinkler run direction in a plot to choose irrigation (only irrigation irrigation area) who need it.
Technical Parameters
- self-propelled sprinkler
- stainless steel frame remote control, stepless speed regulation, automatic reciprocating remote control sprinkler
- stainless steel main frame (including: driving shaft, passive shaft, aligning bearing, type A belt, pulley, nylon roller, belt tensioning device, sprinkler running guide device)
- variable-speed machine
- right Angle spray rod (including: 2 pieces "solenoid valve, 1 piece filter;PV pipe fittings;3 pieces of rubber hose joints;red flag pressure gauge (1 piece)
- box body spray, waterproof, sealed, stepless speed regulation, wireless remote control electric control box (delixi electrical components, others)
- aluminum spray rod (outer diameter: 34mm; wall thickness: 4mm)
- small blocks (including brackets, bearings and racks) for towing cable hoses
- three-position sprinkler head (1) three-position sprinkler head, three different amounts of water, anti-drip, water atomizing sprinkler head (2), Angle of water spraying: 110 degrees;(3) opening pressure: 0.7kg /cm2;(4) nozzle flow: 1.2l/min;2 l/min;2.4 l/min (domestic)
- rubber hose for sprinkler (outer diameter: 29mm; rubber thickness: 5mm)
