Basic Info.
Model NO.
AT2300
Alarm Form
Audible Alarm
Place of Origin
Shenzhen, China
Brand Name
Safeway System
Scanning Area
420*300mm
Penetration
60mmalu.Plate, 6-8mm Steel Plate
Transport Package
Wooden
Specification
CE, SGS, ISO
Trademark
safeway system
Origin
China
HS Code
9022191090
Production Capacity
500PCS/Month
Product Description
Portable Security X Ray Machine X-ray Scanner
High Penetration Portable X Ray System AT2300 for small package inspection

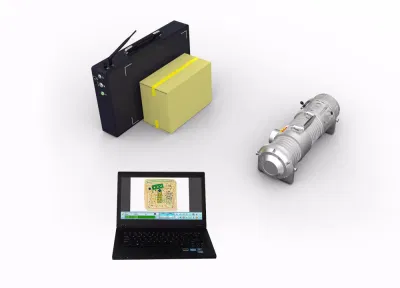

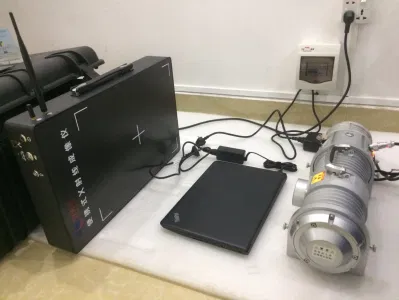

Portable X-ray baggage scanner model: AT2300
The AT2300 is designed to detect weapons, explosives and other dangerous enclosures concealed inside luggage, packages and parcels, or inside vehicles. - Inspect buildings, interior equipment, office equipment, service lines, walls, etc at any time, any where in order to detect hidden objects. Easy to carry with and convenient to use
Special Features:
Relatively small dimensions and lightweight of the system
Autonomous power supply
Complete wireless connection, can be used to remotely control
Use in field conditions thanks to sturdy case for transportation and storage and to broad operating temperature range .
Powerful imaging software with friendly multilingual interface allows exploitation of the system, even by operators with a minimal training
| Physical Specifications | |
| Unit weight (kgs) | x-ray source: 13.3; detection box: 9.6 kgs |
| Unit size (mm) | x-ray source: 545(L)*185(W)*205(H); detection box: 553(L)*85(W)*376(H) |
| after packed in wooden pallet - | |
| Gross weight (kgs) | 28.5 |
| Packing size | #1: 620*223*256cm |
| #2: 640*125*454cm | |
| General Specifications | |
| Penetration | 40mm alu. Plate |
| Scanning Area | 420*300 mm |
| Wire Resolution | dia 0.0787mm copper wire (AWG40) |
| Penetration Resolution | dia 0.203mm copper wire under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm |
| Spatial resolution: | dia1.0mm,Vertical: dia1.0mm |
| Wifi transmission distance | 30m above |
| Detection box | 10W |
| Rechargable battery | no less than 6600mA |
| X-ray Generator (single) | |
| Anode Voltage | 80 -120 kv |
| Anode power | 0.5-1mA (adjustable) |
| Cooling / Duty Cycle | Oil Cooling /100% |
| Power Consumption | 0.12 KVA |
| Image System | |
| Multi-energetic distinguish | organic objects in orange, inorganic objects in blue, mixture in green |
| Image storage | Storage 100,000 pictures in real time |
| Autonomy when powered by the battery in registration mode (number of images) up to 400 images | |
| Image Processing | Black / white, Color, abundant energy , variable absorptive, elimination of inanimate matter, elimination of organism, super-enhance, reversed color, high energy penetration, low energy penetration, image strengthening, image lightening, reducing darkening, etc. |
| Operating Environment | |
| Operation temperature/Humidity | -10ºC-45ºC / 5%-85%(non-condensing) |
| Storage Temperature/Humidity | -40ºCto 70ºC / 5%-85%(non-condensing) |
| Operation Power | 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC) |
| Battery | Built in nickel-metal hydride battery |
| Computer and other | |
| Monitor | High Resolution Color, LCD Accord, 14inch |
| Hard Disk | SEAGATE 500G 3.5" |
| Processor | Intel M 1.7 GHz |
| Compliance | |
| International | * ISO19001 ; ISO14001 ; OHSMS18001 ; * CE * USA FDA * Maximum X-ray leakage of less than 5 μSv/h(0.5mR/h) measured at 5cm from any external surface. (European standard - less than 1 μSv/h(0.1mR/h) measured at 10cm from any external surface) |
| National (China) | * Health Inspection Report * Computer Software Copyright Registration Certificate * Software Product Registration Certificate * Radiation Safety Certificate from Ministry of Public Security * Quality Certification from Safety and Police Electronic Products Quality Inspection Center * Design pantent certification: Patent No. : 201020700245.2 ; Patent No. : 201020700245.8 ; Patent No. : 201020700256.0 |
